70-Inch TV Tilt Mount on Concrete Warehouse Wall in Atlanta, GA
Project Summary
An Atlanta, GA commercial warehouse needed a 70-inch TV mounted on a tall interior concrete wall above the operations desk for shift announcements, security feeds, and team viewing. The install required heavy-duty concrete anchoring, an elevated mounting position to clear desk equipment and warning signage, and a downward tilt so staff could see the screen comfortably from the floor below.
Installation Details

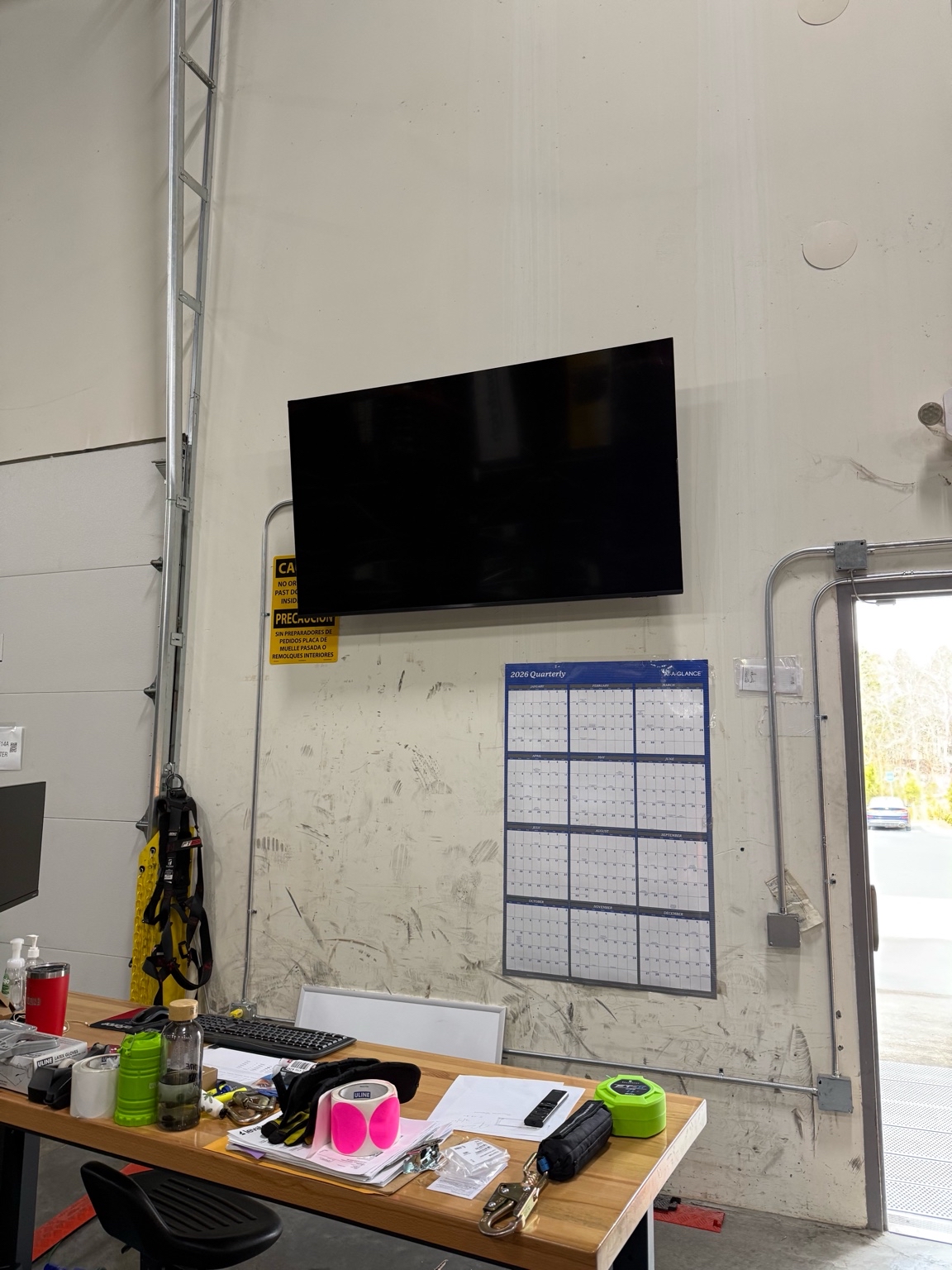

The 70-inch commercial display was mounted on a heavy-duty tilt bracket secured directly into the warehouse's solid concrete wall at approximately 96 inches from the floor to screen center. The elevated position clears the desk workstation, safety signage, and overhead door track below while keeping the screen visible from anywhere on the warehouse floor. The tilt mechanism was set to roughly 12 degrees downward so workers and floor staff have a comfortable, glare-free sightline up to the display from a standing position at the desk and from the open warehouse area.
Professional Techniques Used
A rotary hammer drill with a carbide masonry bit was used to bore precision holes into the solid concrete wall. Heavy-duty concrete sleeve anchors rated well above the combined weight of the 70-inch panel and tilt bracket were driven and torqued to manufacturer spec across four anchor points for industrial-grade hold. The mounting plate was leveled with a digital level before final tightening. Power was routed cleanly along the wall in commercial-grade surface conduit down to the desk-level outlet, keeping the install code-compliant and easy to service. The downward tilt was dialed in on a ladder with the TV live so the viewing angle could be verified from the floor before final lock-down.
Benefits to the Customer
The Atlanta warehouse now has a clearly visible 70-inch display elevated above the operations desk, perfect for security camera monitoring, shift updates, and team viewing across the floor. The concrete-anchored install is rock-solid and built for an industrial environment, and the precise downward tilt means staff can read the screen comfortably from anywhere in the workspace — backed by our 5-year workmanship warranty on commercial installs.
TV Size
70"
Mount Type
Tilt
Wall Type
Concrete
Location
Atlanta, GA
