75-Inch TV Fixed Mount on Drywall in Woodstock, GA Bedroom
Project Summary

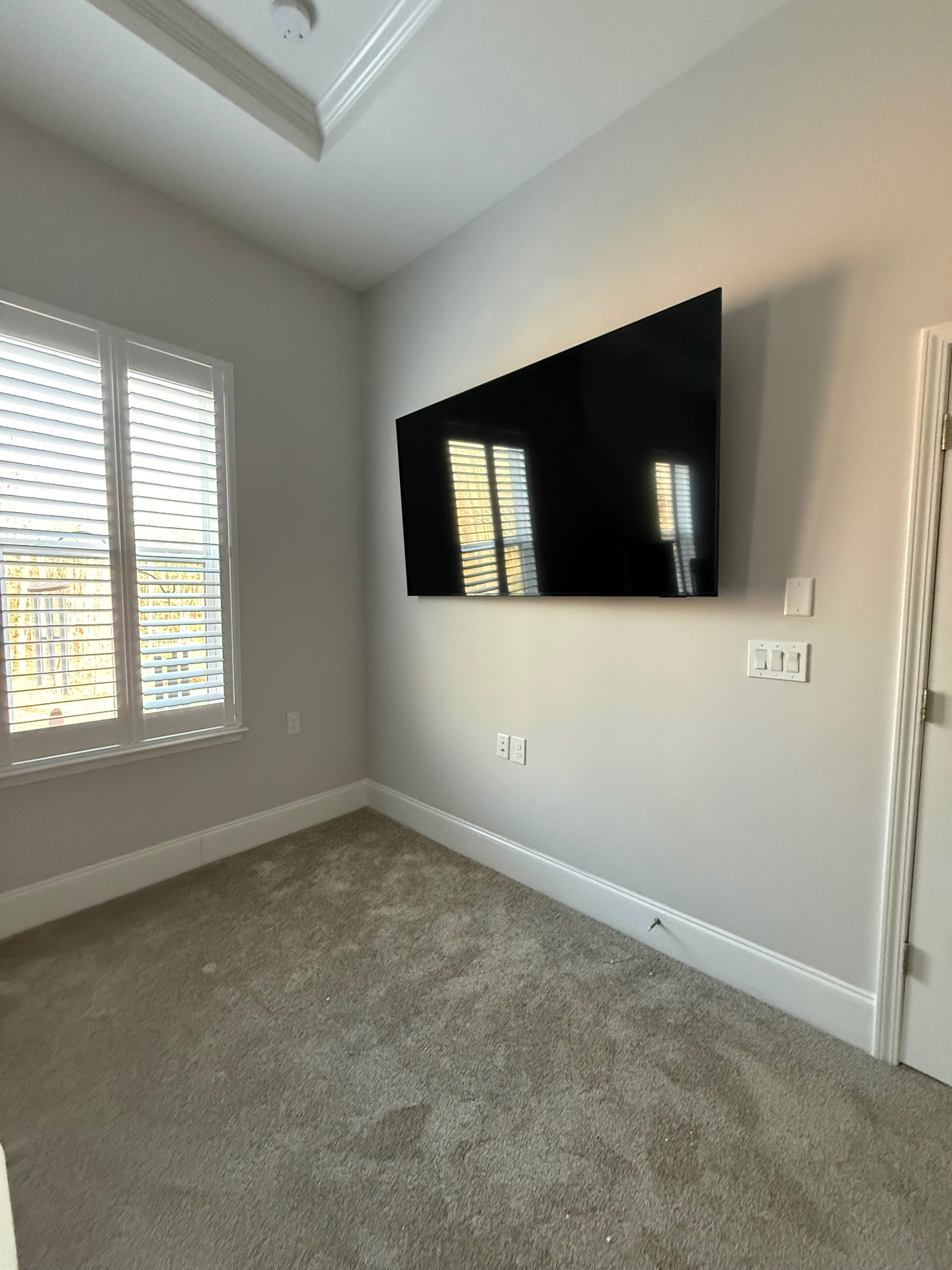

A Woodstock, GA homeowner wanted a 75-inch TV mounted in their master bedroom for a clean, modern entertainment setup. The fixed low-profile mount was selected to keep the large screen flush against the drywall wall. An in-wall electrical outlet was installed directly behind the TV to eliminate visible power cords, and a second lower outlet provides a convenient connection point for a cable box or streaming device. The result is a completely wire-free installation in a bright, elegantly finished bedroom with tray ceilings and plantation shutters.
Installation Details
The 75-inch TV was mounted on a fixed flush bracket secured into two wall studs using heavy-duty lag bolts. The screen was centered on the bedroom wall at 60 inches from floor to center, positioned for comfortable viewing from the bed. A new in-wall electrical outlet was installed behind the TV using a power relocation kit, routing power from the existing lower receptacle up through the wall cavity. A low-voltage pass-through bracket was installed to route HDMI and other cables invisibly between the TV and the lower device outlet.
Professional Techniques Used
Stud detection confirmed two solid wood studs in the mounting zone behind the drywall. The fixed bracket was leveled with a laser level and fastened with 3.5-inch lag bolts rated well beyond the TV's weight. An in-wall power relocation kit with dual-gang old-work boxes was installed to create a hidden outlet behind the TV and a cable pass-through to the lower outlet. All wiring was routed through the wall cavity between the upper and lower brackets, maintaining electrical code compliance. The TV was carefully hung and verified level.
Benefits to the Customer
The Woodstock bedroom now features a stunning 75-inch TV that appears to float on the wall with absolutely zero visible wires or cables. The in-wall power solution and cable pass-through deliver a truly professional, built-in appearance. The fixed mount keeps the TV tight to the wall at just one inch of clearance, complementing the room's upscale finishes including tray ceilings, crown molding, and plantation shutters. The dual-outlet setup allows easy connection of streaming devices without any visible cord clutter.
TV Size
75"
Mount Type
Fixed
Wall Type
Drywall
Location
Woodstock, GA
